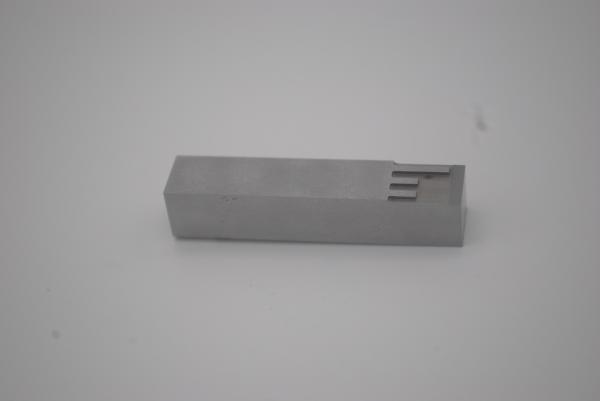

Automotive Electronic Components Metal Precision Mold Parts 58HRC / Injection
Introduction of Precision Mold Parts
Name: Custom Made Precision Machining Mold Parts
Equipment List: Horizontal injection machine, Double injection machine, Vertical injection machine, stamping machine.
Injection Molding Machines: We have 43 machines, buyed from Japan Fanuc, Taiwan YiZhan and China HongRui.
4. Processing methods/ technologies: For the automobile mold parts, it is processed by precision grinders and electrical discharge machines.
5. Processing equipments: Milling , Grinding, Wire cutting, EDM, etc.
6. Application: It's assembled on a car mold as a components.
7. Surface treatment: For this mold part, its surface treatment is polishing. And other surface treatments can be available in our factory, such as: PCD caoting, DLC caoting and mirror polishing, etc.
8. Design software: UG, PRO/E ,CATIA, SOLIDWORK, CAD, PDF, etc.
Design & Engineering
Design
Bring your ideas into reality at GY MOULD!
Our team of highly trained engineers are capable of creating simple to complex designs and assemblies in 2D and 3D formats.
- 2D Part Drawings (.DWG, .DXF, .PDF)
- 3D Modeling (.STEP, .STL, .IGES, .X_T)
- Auto cad 2007
- UG NX6, PRO-E Wildfire 5.0 and Solidworks 2010
Process Simulation
At GY, we emphasize the benefits of DFM to our clients with the knowledge that this powerful diagnostic tool will create a more efficient production cycle and ultimately increase profitability.
We also are capable of addressing design issues at the earliest possible stage by utilizing Mold flow® simulation software to identify vital information that helps avoid costly part redesign, tooling changes or modifications such as:
- Filling Pattern
- Sink Mark Estimate
- Warpage Trends
- Time & Pressures
Machined Processing
Grinding Mirror EDM
1. EDM Processing
Finish(Ra): 0.13
Accuracy: 0.002-0.005mm
Min Clear radius: 0.03mm
2. Grinding Machine Processing
Finish(Ra): 0.05
Accuracy: 0.001mm
Wire Cutting and CNC
1. Wire-cutting Processing
Finish(Ra): 0.08
Accuracy: 0.002mm
Min Clear radius: 0.05mm
2. High Speed CNC Processing
Finish(Ra): 0.1-0.15
Accuracy: 0.002mm
RPS: 35000
Milling Assembly
1. Professional tool makers for prefect assembly.
2. Milling Processing For pre-rough machining.
Stamping Insert Molding
We have 2 automatic stamping machines with 45 tons to produce terminals for insert molding parts. We can provide one-step service for our customers.
